REG Series Rotary Extruding Granulator
The REG rotary granulator is widely used in industries such as pharmacy, foods, medicinal granules, chemicals, and solid beverage. It can press the mixed substance into the demanded particles or smash wasted tablets and dried cubes and then roll them into particles. It is especially suitable for highly sticky substance. The part where the rotary granulator contacts with the substance is made of stainless steel. It possesses a beautiful appearance, proper structure, a high efficiency of particle formation. The particles are beautiful, too. It sends out substance automatically so as to avoid damage caused by manual sending, so it is suitable for line production. The roller blade and the swaging rotate in the opposite directions by means of mechanical rotation. The swaging leaf is placed at a certain angle to push the substance downward into the roller blade, then the large-angle helical blade pushes the substance into the sieve's wall, at last, the blade squeezes the substance into particles through the sieve pores.
Product Features
Discharged by rotating tray and equipped with cutting knife, the efficiency of this machine is 2-3 times than swinging granulator. With simple structure, easy to operat eand move,it is one of the ideal granulation equipment,which is also reach the GMP standard. An automatic discharge reduces materials accumulation. Water cooling system is optional. Suitable for semi-dry powder and viscous material, food solids drinks, chicken powder and so on.
Product Application
Rotary granulator is mainly used in food, pharmaceutical, chemical, Chinese traditional medicine granule, solid beverag
chicken and other with the water viscosity material granulating, classical materials are: solid instant granule particle, lotus root starch granules, chicken ginger poor red jujube poor infusion of particles, such as particles. It has the following characteristics:
1.The particle strength is not high, when the water is dispersed and rapidly dissolves;
2.It is very convenient to change the sieve into different diameter particles;
3.Extruded particles through a sieve mesh evenly.
Technical Parameters
| Size of miling knife(mm) | 250 | 300B | 30D |
| Granule diameter(mm) | Ø2-2.2 according to custoemer's requrements | Ø1.2-3 according to custoemer's requrements | Ø0.5-6 according to custoemer's requrements |
| Overall dimensions(mm) | 700*540*1300 | 800*640*1300 | 1300*800*1200 |
| Motor power(kw) | 3 | 4 | 7.5-6 |
| Weight(kg) | 350 | 400 | 780 |
| Production capacity(kg/h) | 100-200 | 140-400 | 300-600 |

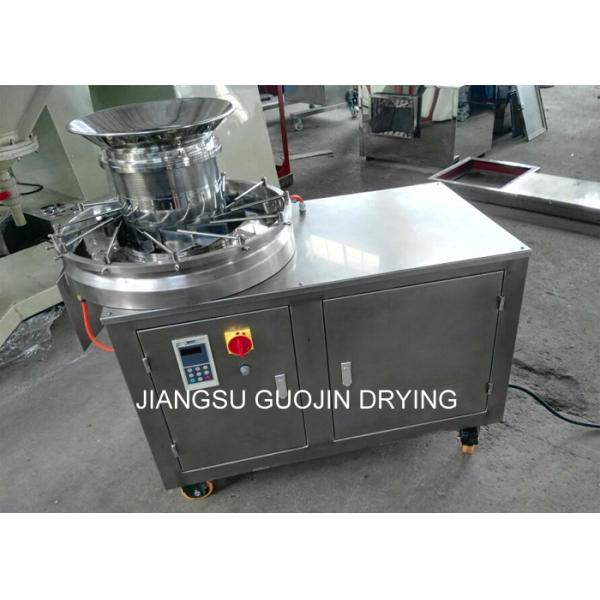

Product Detailed Images
