Rotary Spin Flash Dryer Used For Lead Chrome Yellow
SFD Lead Chrome Yellow Dryer Description
The flash dryer is widely used in the dispersion and drying of granular, powdery, paste-like and filter cake-like false agglomerates in the chemical, pharmaceutical, building materials, food, feed, and other industries.
The flash dryer has the advantages of the small occupied area, low energy consumption, high thermal efficiency, and continuous mass production. The flash dryer body is provided with a rotary cutting device, and the dry material is subjected to shearing, rotating, collision, friction, etc., so that the material is pulverized and refined, and is highly dispersed, thereby achieving the effect of efficiently and rapidly evaporating water. The dryer is equipped with an air filter to achieve the cleanliness of the hot air and to provide production conditions for the hygiene requirements of the food industry. The machine sets the cyclone separation and collecting materials. In addition, the bag dust removal receipt is added to increase the material recovery rate. It can improve the economic efficiency of enterprises. The dryer can be customized according to user needs.
SFD Lead Chrome Yellow Dryer Features
1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon
2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area
3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.
SFD Lead Chrome Yellow Dryer Application
1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.
2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.
3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.
SFD Lead Chrome Yellow Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
SFD Lead Chrome Yellow Dryer Flowchart

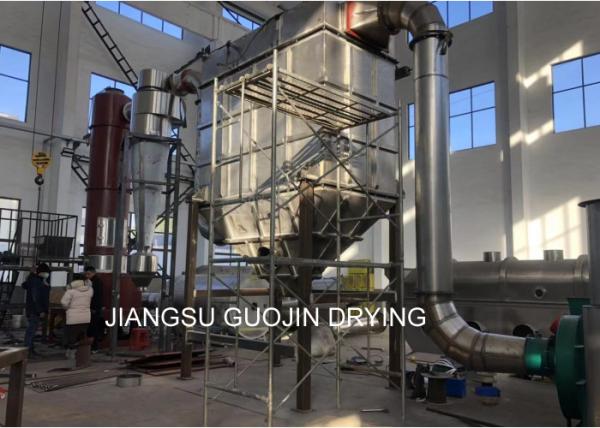

SFD Lead Chrome Yellow Dryer Show
